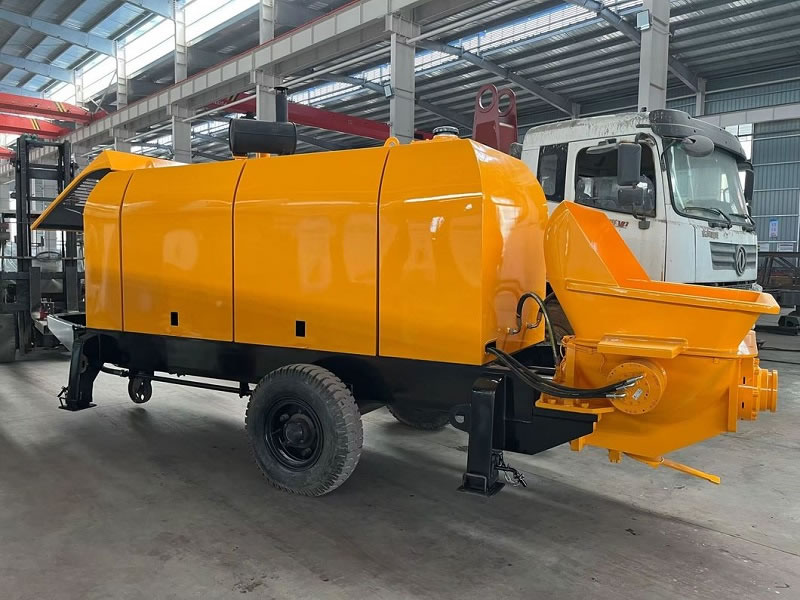

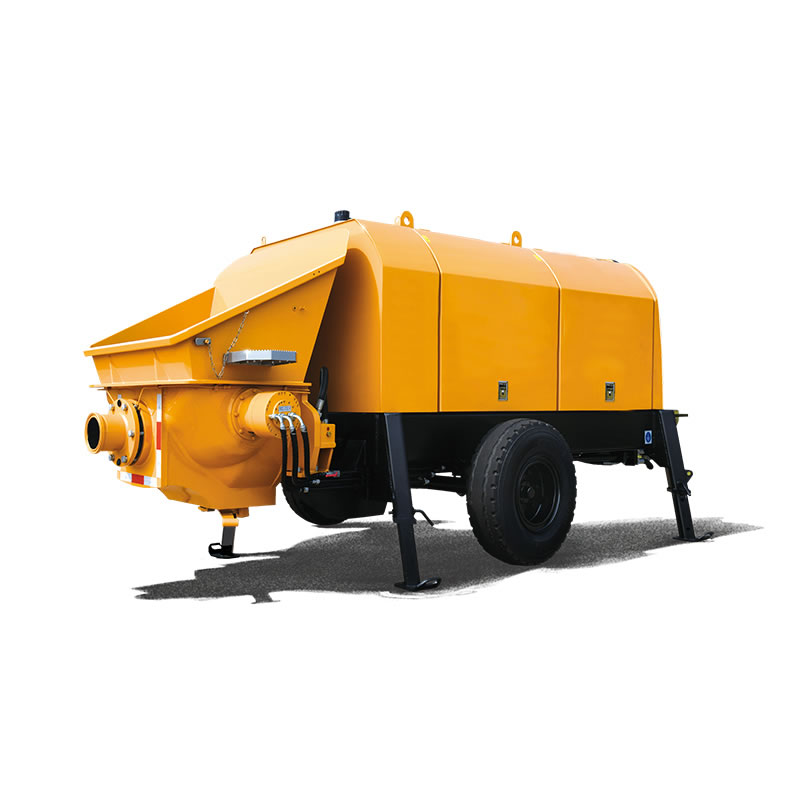

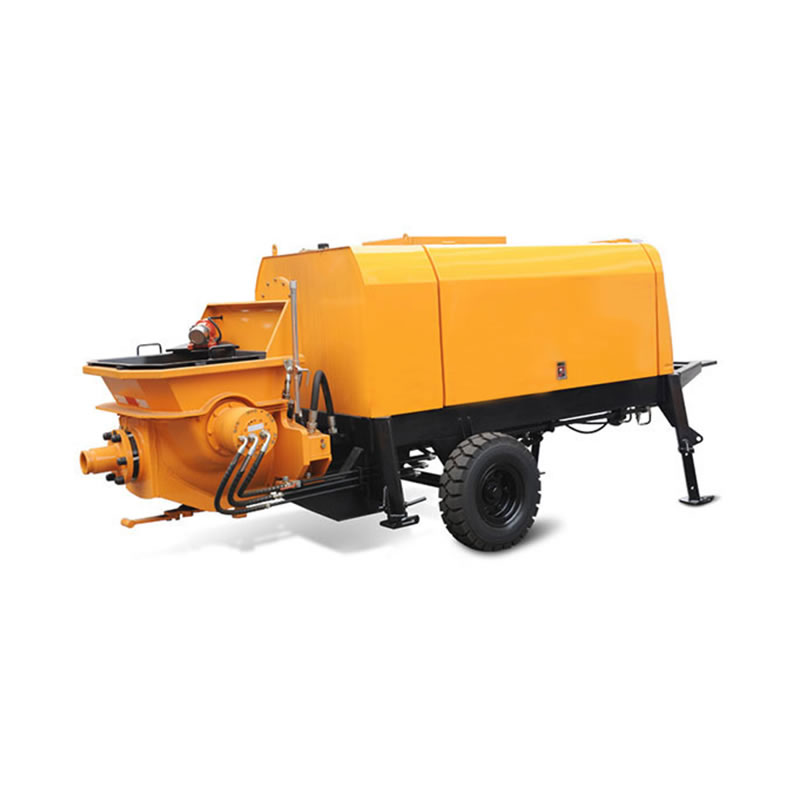

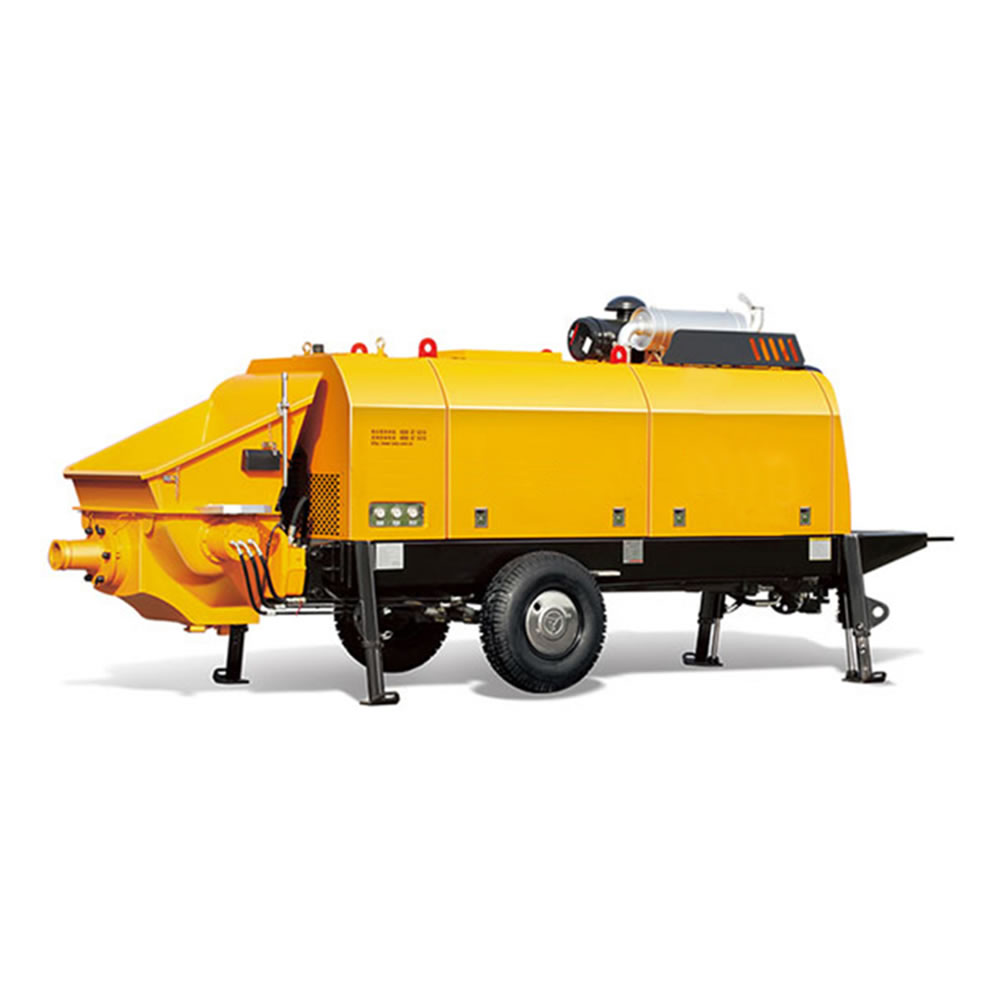

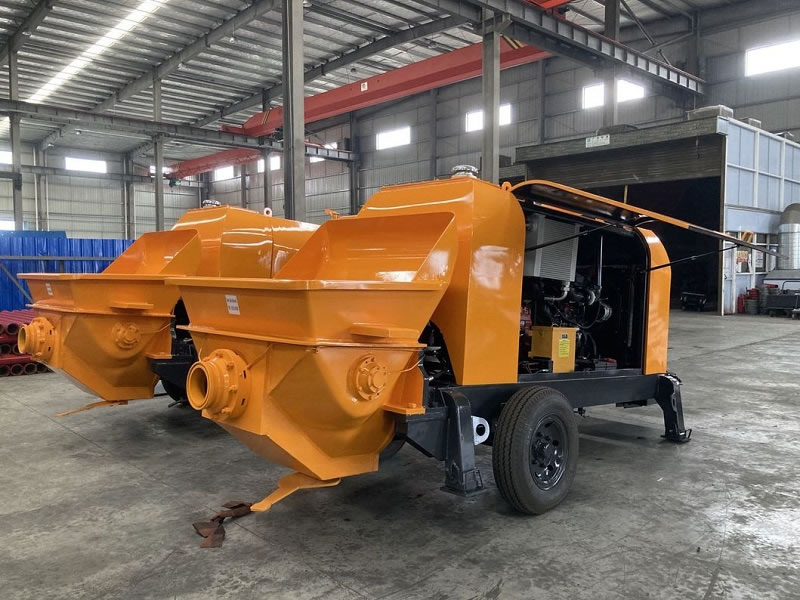

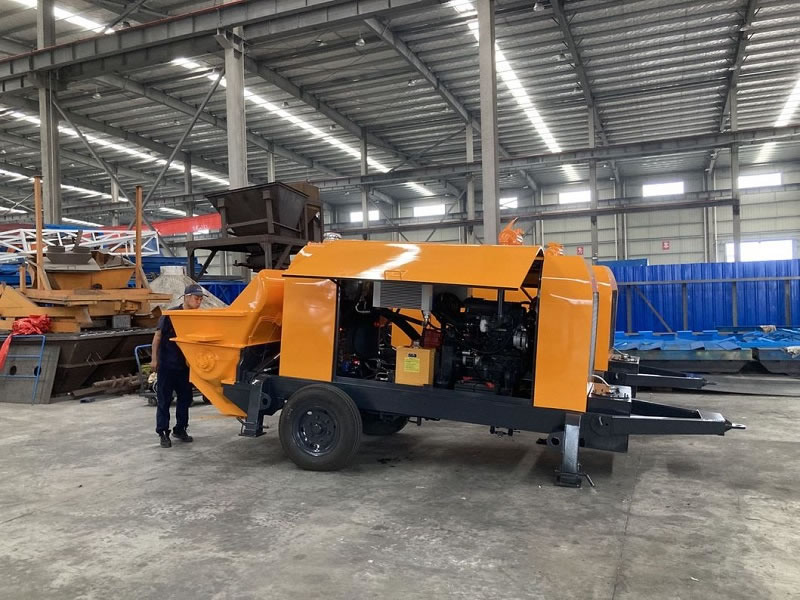

HBT50 Diesel Concrete Trailer Pump
HBT50 Diesel Concrete Trailer Pump stands out as an indispensable asset in modern construction, offering exceptional performance, durability, and versatility across a wide range of applications.
Get free product catalog
- Quality Commitment
The HBT50 Diesel Concrete Trailer Pump is engineered to provide efficient and reliable concrete pumping solutions across various construction environments. Powered by a robust diesel engine, it delivers a maximum theoretical concrete output of 50 cubic meters per hour, making it ideal for small to medium-scale projects.
Product Advantages

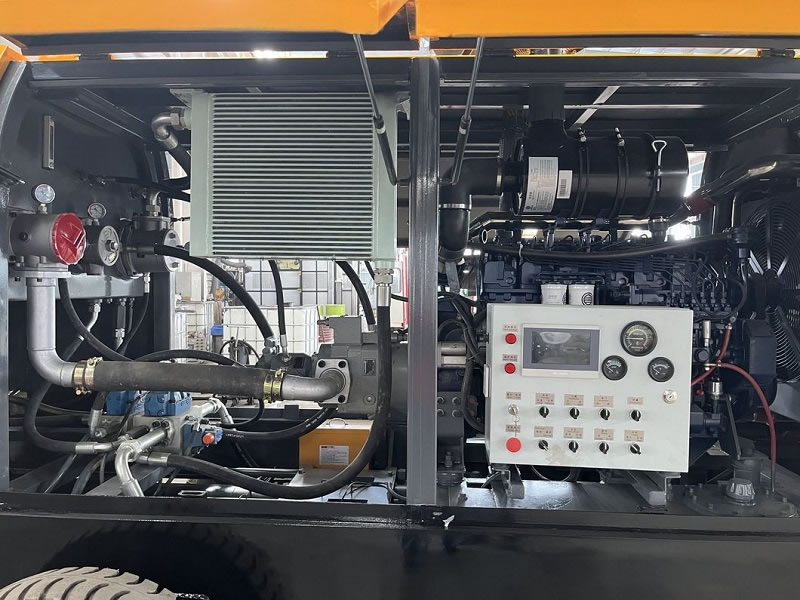

Efficient Hydraulic System
The pump features a dual-pump, dual-circuit open hydraulic system, reducing system impact and enhancing efficiency for continuous and stable operation.
Wear-Resistant Components
Key parts, such as the S-tube valve, are constructed from high wear-resistant materials, extending service life and minimizing maintenance costs.
Advanced Technology
The S-tube valve offers excellent sealing performance and can automatically compensate for wear, ensuring continuous and efficient concrete delivery.
Versatile Concrete Handling
Capable of handling various concrete mixes, including fine stone concrete and mortar, the pump meets diverse construction requirements.
Technical parameters
Electric Motor series
| Parameter | Unit | HBTS30.06.45E | HBTS50.10.75E | HBTS60.13.90E | HBTS80.16.110E | HBTS90.18.132E |
| Max.Theor.Concrete Output | m3/h | 30 | 50 | 60 | 80 | 90 |
| Pumping Pressure | Mpa | 6 | 10 | 13 | 16 | 18 |
| Form of Distribution Valve | S valve | S valve | S valve | S valve | S valve | |
| Concrete Cylinder Size | mm | 160×1000 | 200×1400 | 200×1600 | 200×1800 | 200×1800 |
| Hopper Capacity | L | 350 | 700 | 700 | 700 | 700 |
| Hopper Height | mm | 1000 | 1450 | 1450 | 1450 | 1450 |
| Practical Pumping Distance (Vertical/ Horizontal) | m | 30/100 | 80/350 | 100/700 | 140/800 | 180/1200 |
| Max. Aggregate Size | mm | 30 | 40 | 40 | 40 | 40 |
| Motor Power | kw | 45 | 75 | 90 | 110 | 132 |
| Overall Dimension (LxWxH) | m | 4800x1500x1700 | 5320x2160x2010 | 5800x2160x2200 | 5800x2160x2200 | 5800x2160x2200 |
| Total Weight | kgs | 2600 | 4800 | 6480 | 6480 | 6480 |
Diesel Engine series
| Parameter | Unit | HBTS20.06.38R | HBTS30.06.52R | HBTS40.08.72R | HBTS50.10.85R | HBTS60.13.130R | HBTS80.16.176R | HBTS90.18.186R |
| Max.Theor.Concrete Output | m3/h | 20 | 30 | 40 | 50 | 60 | 80 | 90 |
| Pumping Pressure | Mpa | 6 | 6 | 8 | 10 | 13 | 16 | 18 |
| Form of Distribution Valve | S valve | S valve | S valve | S valve | S valve | S valve | S valve | |
| Hopper Capacity | L | 350 | 350 | 700 | 700 | 700 | 700 | 700 |
| Hopper Height | mm | 1000 | 1000 | 1450 | 1450 | 1450 | 1450 | 1450 |
| Practical Pumping Distance(Vertical/ Horizontal) | m | 30/100 | 35/150 | 50/200 | 60/260 | 120/700 | 150/800 | 180/1200 |
| Max. Aggregate Size | mm | 30 | 30 | 40 | 40 | 40 | 40 | 40 |
| Engine Brand | Dongfanghong | Dongfanghong | Weichai | Weichai | Weichai | Weichai | Weichai | |
| Engine Power | kw | 38 | 52 | 72 | 85 | 130 | 176 | 186 |
| Overall Dimension (LxWxH) | mm | 3200x1500x1500 | 4800x1500x1700 | 4800x1500x1700 | 4800x1500x2200 | 5800x2160x2200 | 5800x2160x2200 | 5800x2160x2200 |
| Total Weight | kgs | 2200 | 2600 | 3500 | 3500 | 6480 | 6580 | 6680 |
Product Applications

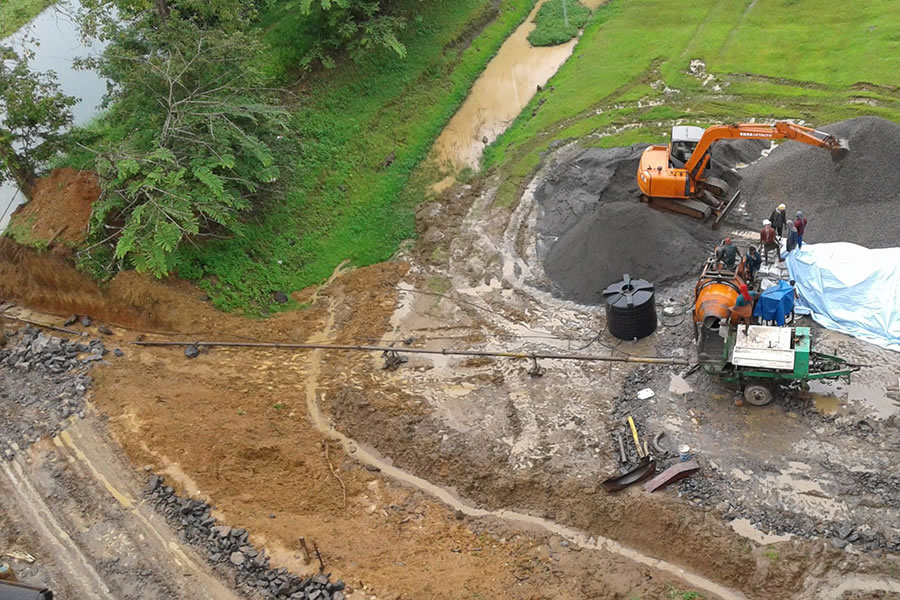

Water Conservancy Projects-
Energy Facility Construction
-
Rural Infrastructure Development
-
Bridge and Tunnel Construction
-
Urban Construction Projects
-
Industrial and Mining Operations
