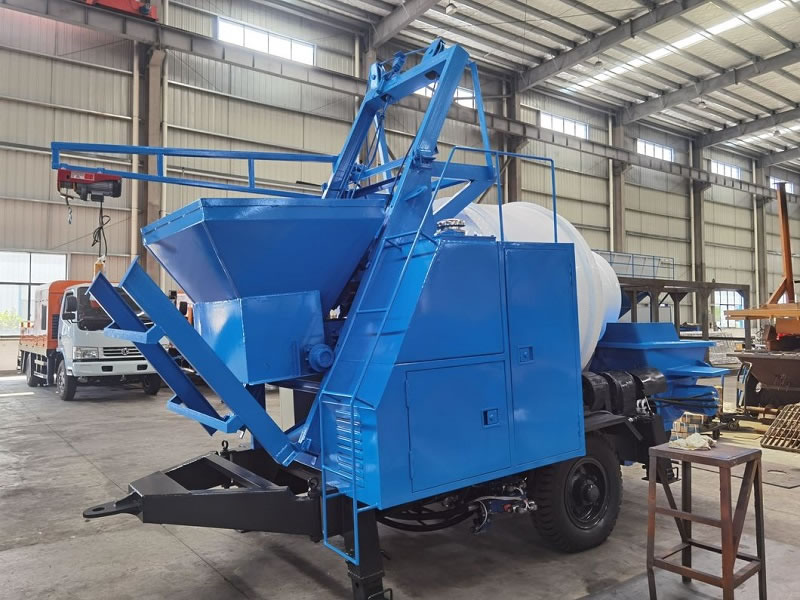

High-Performance Concrete Mixer Pump for Construction
HBT90 Electric Concrete Trailer Pump stands out as an indispensable asset in modern construction, offering exceptional performance, durability, and versatility across a wide range of applications.
Get free product catalog
- Quality Commitment
The Concrete Mixer Pump is an innovative, integrated solution that combines concrete mixing and pumping functions into a single compact machine. Designed for modern construction projects, this equipment streamlines the concrete placement process by efficiently mixing the concrete on-site and immediately pumping it to the desired location.
Product Advantages
Integrated Design
Combines mixing and pumping functionalities, reducing labor and shortening construction time.
High Performance
Delivers consistent, high-volume output with a reliable motor, ensuring smooth and uniform concrete placement.
Efficient Operation
Engineered with an advanced hydraulic system and optimized mixing technology, which minimizes energy consumption while maximizing output.
Robust Build
Constructed with high-quality, wear-resistant materials to offer long-lasting durability and low maintenance requirements.

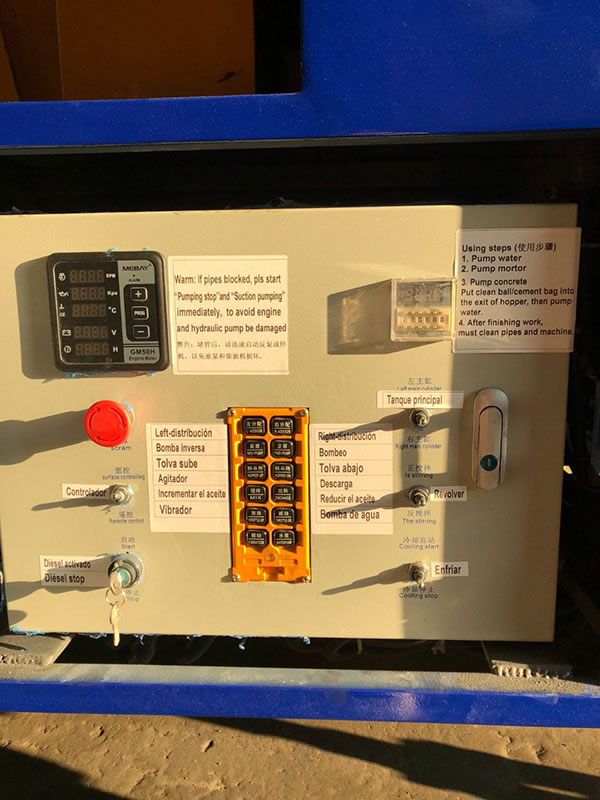

User-Friendly Interface
Features simple controls and remote operation capabilities, ensuring ease of use and enhanced safety on job sites.
Versatile Application
Suitable for a wide range of projects including high-rise buildings, roadways, bridges, tunnels, and industrial infrastructure, making it an ideal choice for diverse construction environments.
Technical parameters
| Item | Unit | V5 |
| Concrete delivery capacity | m3/h | 30 |
| Maximum outlet pressure | MPa | 10 |
| Maximum horizontal delivery distance | m | 500 |
| Maximum vertical delivery distance | m | 150 |
| Maximum aggregate size | mm | ≤30 |
| Filling height | mm | 1150 |
| Hydraulic Oil | Open circuit | |
| Lubrication | Automatically | Automatically |
| concrete cylinder bore*stroke | mm | Φ160* 1100 |
| The maximum pressure of the hydraulic system | MPa | 30 |
| Hydraulic oil tank | L | 300 |
| Engine power | kw | 78 |
| Dimensions (L × W × H) | mm | 5000x2000x2260 |
| Weight | kg | 5000 |
